Garage Door Sensor Repair in Round Rock, TX
A door that starts down, flashes its light and goes straight back up is almost always talking about the two small sensors by the floor. Most of these calls end the same visit.
What Garage Door Sensor Repair Fixes, and What It Does Not
Garage door sensor repair is the work on the pair of photo eyes mounted low on each track: cleaning, realigning, rewiring or replacing them so the beam between them connects again. A realignment is often done inside a $49 to $140 tune-up visit, and a new matched pair fitted runs $150 to $220. A door that refuses to open has some other fault.
Every opener sold in the US since 1993 has to protect against trapping someone under a closing door. The federal safety standard for residential garage door openers allows a few ways of doing that, and the photo-eye pair is the one on nearly every Round Rock garage. One eye sends an invisible beam across the opening a few inches off the floor, the other receives it, and the moment the beam breaks the opener reverses.
That is also why a sensor fault looks dramatic. The opener cannot tell a child from a misaligned bracket, so it refuses to close. It is doing its job. The repair is getting the beam back, never getting rid of it.
Read the Two Little Lights Before You Call
Each eye carries a small LED. On most LiftMaster and Chamberlain units the sending eye glows steady amber and the receiving eye glows steady green when the beam connects. A dark or flickering green light means the receiver is not seeing the beam. Chamberlain's own troubleshooting page walks through the same checks with photos.
| What you see | Likely cause | Can you try it? |
|---|---|---|
| Receiving light dark or flickering | Eye knocked out of line, or a dirty lens | Yes: wipe the lens, loosen the wing nut, aim it back |
| Both lights off | No power reaching the eyes: broken or shorted wire | Check the wire run for staples and chew marks |
| Door shuts only with the wall button held down | Opener treats the beam as broken | Clean and realign first; then call |
| Fails only on sunny late afternoons | Low sun shining straight into the receiver | A sun shield or swapping the eyes' sides |
| Fails after storms or on humid nights | Moisture in a nicked wire or a corroded terminal | Needs rewiring, usually a short job |
| Lights steady, door still reverses | Force setting or binding near the floor, not the eyes | No: that is an opener or track problem |
A pattern, not a promise. A symptom outside this table is worth describing on the phone before anyone buys parts.
How a Sensor Visit Runs
Prove it is the eyes
5 minutesWatch the lights, hold the wall button, break the beam by hand. That separates a sensor fault from a force setting or a dragging door.
Clean and aim

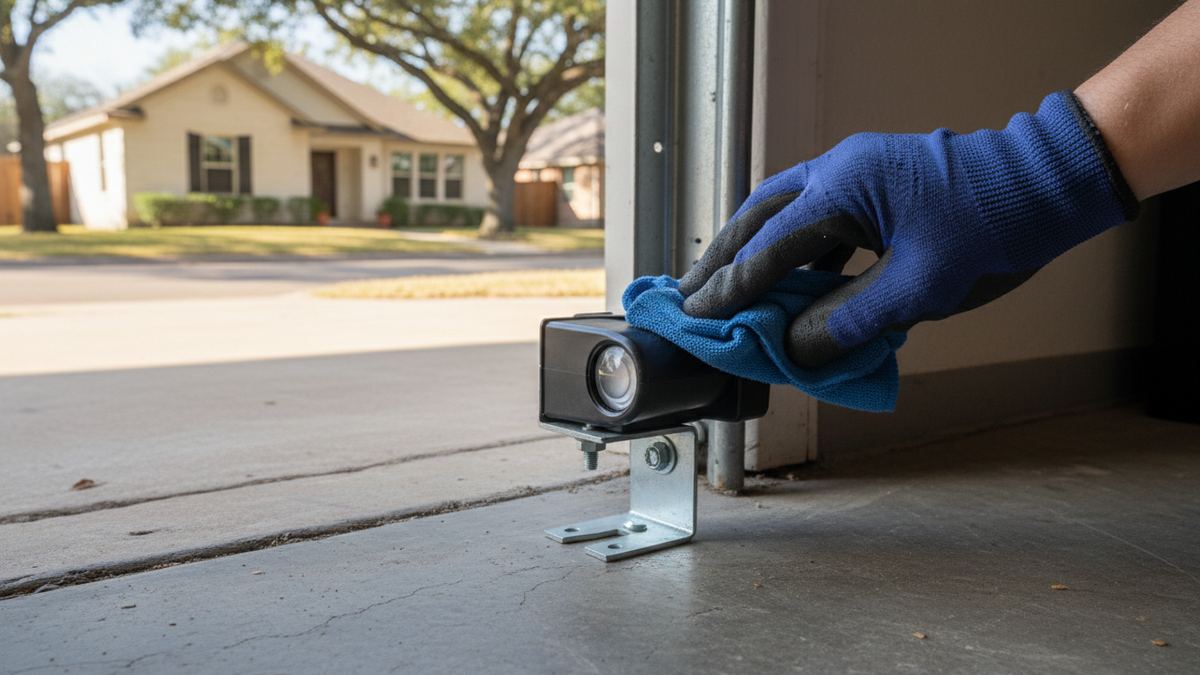

10 minutesLenses wiped, brackets tightened, both eyes set to the same height and squared to each other across the opening.
Trace the wire
15 minutesThe thin two-conductor cable followed back to the opener terminals, looking for staples through it, chewed insulation and corroded ends.
Repair or replace
10 to 30 minutesA new wire run, new terminals, or a matched pair of eyes if a lens is cracked or the electronics have failed.
Test the reversal
5 minutesA board flat on the floor under the door, the door closed onto it, and a reversal confirmed before we leave.
Door won't close tonight?
Tell us what the two sensor lights are doing. It is often enough to name the fault on the call.
Call (512) 778-8716Sensor Work Priced Before a Screw Turns
| Job | Typical range | When it applies |
|---|---|---|
| Realignment and cleaning | Part of a $49 to $140 tune-up | Eyes knocked out of line, lenses dirty |
| Sensor wiring repaired or replaced | Low end of the $150 to $400 opener band | Stapled, chewed or corroded wire |
| New matched pair of photo eyes fitted | $150 to $220 | Cracked lens, dead electronics, or a pair of mismatched eyes |
| Opener repair found instead | $150 to $400 | Board, gear or limit fault behind the reversing |
Ranges, not a quote. You hear the firm figure after the lights and the wiring have been checked, before any part is fitted.
Every price on the site sits in one place on our garage door repair cost guide for Round Rock, if you want to compare this job against the others.
Heat, Sun and the Local Reasons Sensors Act Up
Round Rock garages are hard on small electronics. The official Central Texas record station logged 90 days at or above 100 degrees in 2011, still the record, and an unconditioned garage runs hotter than the air outside. Sensor housings are plastic, their brackets are thin steel, and the wire is stapled along a wall that expands and shrinks every day of the summer. Summer storms from the NWS forecast office for Williamson County add surges and moisture on top.
West-facing garages get a second problem: for a few weeks either side of midsummer, the evening sun drops to the height of the receiving eye and floods the beam. The door works at noon and fails at seven. Swapping which side the sending and receiving eyes sit on, or fitting a small shade, ends it.
Do not tape the eyes together or move them up near the ceiling. It is a common trick for a door that will not close, and it removes the only thing between a closing door and whatever is under it. If the door has to close tonight, hold the wall button down to drive it closed while you watch it, then call.
If the lights are steady and the door still reverses, the fault sits elsewhere, usually in the opener's force settings or a door dragging on worn rollers, which is roller replacement. For everything else on the door, start with our garage door repair service in Round Rock, and for a door that moves when nobody touched it, read why a garage door opens by itself.
Sensor Questions We Hear Every Week
Why does my garage door go back up when I try to close it?
Usually because the safety sensors cannot see each other. Check that both LEDs are lit and steady, wipe the lenses, and make sure nothing sits in the beam. Steady lights plus a reversing door point instead to resistance near the floor.
How much does garage door sensor repair cost in Round Rock?
A realignment is usually covered inside a $49 to $140 tune-up visit. A new matched pair of sensors fitted runs $150 to $220. Rewiring sits at the low end of our $150 to $400 opener repair band.
Can I bypass the garage door sensors?
You should not. The sensors are the entrapment protection every opener has had to carry since 1993. Holding the wall button down will drive most doors closed in an emergency, but get the sensors fixed rather than defeated.
Do garage door sensors have to be a certain height?
Yes. They sit at most 6 inches off the slab, low enough for the beam to catch a crawling child or a small dog. Both eyes should be at the same height and facing each other squarely.
Can I use any brand of sensor with my opener?
No. Sensors are matched to the opener brand and often to its generation. We fit a pair made for your opener, which is why the model number on the motor head is useful to have when you call.
